Introduction to the A* Algorithm

  from Red Blob Games
Created 26 May 2014, updated Aug 2014, Feb 2016, Jun 2016, Jun 2020

In games we often want to find paths from one location to another. We’re not only trying to find the shortest distance; we also want to take into account travel time. Move the blob (start point) and cross (end point) to see the shortest path.

To find this path we can use a graph search algorithm, which works when the map is represented as a graph. A* is a popular choice for graph search. Breadth First Search is the simplest of the graph search algorithms, so let’s start there, and we’ll work our way up to A*.

Representing the map#

The first thing to do when studying an algorithm is to understand the data. What is the input? What is the output?

Input: Graph search algorithms, including A*, take a “graph” as input. A graph is a set of locations (“nodes”) and the connections (“edges”) between them. Here’s the graph I gave to A*:

Different map with the same pathfinding graph
Sprites by StarRaven - see footer for link

A* doesn’t see anything else. It only sees the graph. It doesn’t know whether something is indoors or outdoors, or if it’s a room or a doorway, or how big an area is. It only sees the graph! It doesn’t know the difference between this map and .

Output: The path found by A* is . The edges are abstract mathematical concepts. A* will tell you to move from one location to another but it won’t tell you how. Remember that it doesn’t know anything about rooms or doors; all it sees is the graph. You’ll have to decide whether a graph edge returned by A* means moving from tile to tile or walking in a straight line or opening a door or swimming or running along a curved path.

Tradeoffs: For any given game map, there are many different ways of making a pathfinding graph to give to A*. The above map makes most doorways into nodes; what if we made ? What if we used ?

The pathfinding graph doesn’t have to be the same as what your game map uses. A grid game map can use a non-grid pathfinding graph, or vice versa. A* runs fastest with the fewest graph nodes; grids are often easier to work with but result in lots of nodes. This page covers the A* algorithm but not graph design; see my other page[1] for more about graphs. For the explanations on the rest of the page, I’m going to use grids because it’s easier to visualize the concepts.

Algorithms#

There are lots of algorithms that run on graphs. I’m going to cover these:

Breadth First Search explores equally in all directions. This is an incredibly useful algorithm, not only for regular path finding, but also for procedural map generation, flow field pathfinding, distance maps, and other types of map analysis.
Dijkstra’s Algorithm (also called Uniform Cost Search) lets us prioritize which paths to explore. Instead of exploring all possible paths equally, it favors lower cost paths. We can assign lower costs to encourage moving on roads, higher costs to avoid enemies, and more. When movement costs vary, we use this instead of Breadth First Search.
A* is a modification of Dijkstra’s Algorithm that is optimized for a single destination. Dijkstra’s Algorithm can find paths to all locations; A* finds paths to one location, or the closest of several locations. It prioritizes paths that seem to be leading closer to a goal.

I’ll start with the simplest, Breadth First Search, and add one feature at a time to turn it into A*.

The key idea for all of these algorithms is that we keep track of an expanding ring called the frontier. On a grid, this process is sometimes called “flood fill”, but the same technique also works for non-grids. Start the animation to see how the frontier expands

How do we implement this? Repeat these steps until the frontier is empty:

  1. Pick and remove a location from the frontier
  2. Expand it by looking at its neighbors          . Skip walls. Any unreached neighbors we add to both the frontier and the reached set      .

Let’s see this up close. The tile are numbered in the order we visit them. Step through to see the expansion process:

It’s only ten lines of (Python) code:

frontier = Queue()
frontier.put(start )
reached = set()
reached.add(start)

while not frontier.empty():
   current = frontier.get()
   for next in graph.neighbors(current):
      if next not in reached:
         frontier.put(next)
         reached.add(next)

This loop is the essence of the graph search algorithms on this page, including A*. But how do we find the shortest path? The loop doesn’t actually construct the paths; it only tells us how to visit everything on the map. That’s because Breadth First Search can be used for a lot more than just finding paths; in this article I show how it’s used for tower defense, but it can also be used for distance maps, procedural map generation, and lots of other things. Here though we want to use it for finding paths, so let’s modify the loop to keep track of where we came from for every location that’s been reached, and rename the reached set to a came_from table (the keys of the table are the reached set):

frontier = Queue()
frontier.put(start )
came_from = dict() # path A->B is stored as came_from[B] == A
came_from[start] = None

while not frontier.empty():
   current = frontier.get()
   for next in graph.neighbors(current):
      if next not in came_from:
         frontier.put(next)
         came_from[next] = current

Now came_from for each location points to the place where we came from. They form a “flow field” and act like “breadcrumbs”. They’re enough to reconstruct the entire path. Move the cross to see how following the arrows gives you a reverse path back to the start position.

The code to reconstruct paths is simple: follow the arrows backwards from the goal to the start. A path is a sequence of edges, but often it’s easier to store the nodes:

current = goal
path = []
while current != start:
   path.append(current)
   current = came_from[current]
path.append(start) # optional
path.reverse() # optional

That’s the simplest pathfinding algorithm. It works not only on grids as shown here but on any sort of graph structure. In a dungeon, graph locations could be rooms and graph edges the doorways between them. In a platformer, graph locations could be locations and graph edges the possible actions such as move left, move right, jump up, jump down. In general, think of the graph as states and actions that change state. I have more written about map representation here[2]. In the rest of the article I’ll continue using examples with grids, and explore why you might use variants of breadth first search.

Early exit#

We’ve found paths from one location to all other locations. Often we don’t need all the paths; we only need a path from one location to one other location. We can stop expanding the frontier as soon as we’ve found our goal. Drag the around see how the frontier stops expanding as soon as it reaches the goal.

Without early exit
With early exit

The code is straightforward:

frontier = Queue()
frontier.put(start )
came_from = dict()
came_from[start] = None

while not frontier.empty():
   current = frontier.get()

   if current == goal:
      break

   for next in graph.neighbors(current):
      if next not in came_from:
         frontier.put(next)
         came_from[next] = current

There are lots of cool things you can do with early exit conditions.

Movement costs#

So far we’ve made steps have the same “cost”. In some pathfinding scenarios there are different costs for different types of movement. For example in Civilization, moving through plains or desert might cost 1 move-point but moving through forest or hills might cost 5 move-points. In the map at the top of the page, walking through water cost 10 times as much as walking through grass. Another example is diagonal movement on a grid that costs more than axial movement. We’d like the pathfinder to take these costs into account. Let’s compare the number of steps from the start with the distance from the start:

Number of steps
Distance

For this we want Dijkstra’s Algorithm (or Uniform Cost Search). How does it differ from Breadth First Search? We need to track movement costs, so let’s add a new variable, cost_so_far. This stores the total movement cost from the start location, also called a “distance field”. We want to take the movement costs into account when deciding how to evaluate locations; let’s turn our queue into a priority queue. Less obviously, we may end up visiting a location multiple times, with different costs, so we need to alter the logic a little bit. Instead of adding a location to the frontier if the location has never been reached, we’ll add it if the new path to the location is better than the best previous path.

frontier = PriorityQueue()
frontier.put(start, 0)
came_from = dict()
cost_so_far = dict()
came_from[start] = None
cost_so_far[start] = 0

while not frontier.empty():
   current = frontier.get()

   if current == goal:
      break

   for next in graph.neighbors(current):
      new_cost = cost_so_far[current] + graph.cost(current, next)
      if next not in cost_so_far or new_cost < cost_so_far[next]:
         cost_so_far[next] = new_cost
         priority = new_cost
         frontier.put(next, priority)
         came_from[next] = current

Using a priority queue instead of a regular queue changes the way the frontier expands. Contour lines are one way to see this. Start the animation to see how the frontier expands more slowly through the forests, finding the shortest path around the central forest instead of through it:

Breadth First Search
Dijkstra’s Algorithm

Movement costs other than 1 allow us to explore more interesting graphs, not only grids. In the map at the top of the page, movement costs were based on the distance from room to room. Movement costs can also be used to avoid or prefer areas based on proximity to enemies or allies.

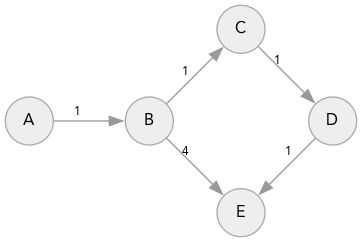

Implementation notes: We want this priority queue to return the lowest value first. On the implementation page I show PriorityQueue  in Python using heapq to return the lowest value first and also in C++ using std::priority_queue configured to return the lowest value first. Also, the version of Dijkstra’s Algorithm and A* I present on this page differs from what’s in algorithms textbooks. It’s much closer to what’s called Uniform Cost Search. I describe the differences on the implementation page.

Heuristic search#

With Breadth First Search and Dijkstra’s Algorithm, the frontier expands in all directions. This is a reasonable choice if you’re trying to find a path to all locations or to many locations. However, a common case is to find a path to only one location. Let’s make the frontier expand towards the goal more than it expands in other directions. First, we’ll define a heuristic function that tells us how close we are to the goal:

def heuristic(a, b):
   # Manhattan distance on a square grid
   return abs(a.x - b.x) + abs(a.y - b.y)

In Dijkstra’s Algorithm we used the actual distance from the start for the priority queue ordering. Here instead, in Greedy Best First Search, we’ll use the estimated distance to the goal for the priority queue ordering. The location closest to the goal will be explored first. The code uses the priority queue from Dijkstra’s Algorithm but without cost_so_far:

frontier = PriorityQueue()
frontier.put(start, 0)
came_from = dict()
came_from[start] = None

while not frontier.empty():
   current = frontier.get()

   if current == goal:
      break

   for next in graph.neighbors(current):
      if next not in came_from:
         priority = heuristic(goal, next)
         frontier.put(next, priority)
         came_from[next] = current

Let’s see how well it works:

Dijkstra’s Algorithm
Greedy Best-First Search

Wow!! Amazing, right? But what happens in a more complex map?

Dijkstra’s Algorithm
Greedy Best-First Search

Those paths aren’t the shortest. So this algorithm runs faster when there aren’t a lot of obstacles, but the paths aren’t as good. Can we fix this? Yes!

The A* algorithm#

Dijkstra’s Algorithm works well to find the shortest path, but it wastes time exploring in directions that aren’t promising. Greedy Best First Search explores in promising directions but it may not find the shortest path. The A* algorithm uses both the actual distance from the start and the estimated distance to the goal.

The code is very similar to Dijkstra’s Algorithm:

frontier = PriorityQueue()
frontier.put(start, 0)
came_from = dict()
cost_so_far = dict()
came_from[start] = None
cost_so_far[start] = 0

while not frontier.empty():
   current = frontier.get()

   if current == goal:
      break

   for next in graph.neighbors(current):
      new_cost = cost_so_far[current] + graph.cost(current, next)
      if next not in cost_so_far or new_cost < cost_so_far[next]:
         cost_so_far[next] = new_cost
         priority = new_cost + heuristic(goal, next)
         frontier.put(next, priority)
         came_from[next] = current

Compare the algorithms: Dijkstra’s Algorithm calculates the distance from the start point. Greedy Best-First Search estimates the distance to the goal point. A* is using the sum of those two distances.

Dijkstra’s Algorithm
Greedy Best-First
A* Search

Try opening a hole in the wall in various places. You’ll find that when Greedy Best-First Search finds the right answer, A* finds it too, exploring the same area. When Greedy Best-First Search finds the wrong answer (longer path), A* finds the right answer, like Dijkstra’s Algorithm does, but still explores less than Dijkstra’s Algorithm does.

A* is the best of both worlds. As long as the heuristic does not overestimate distances, A* finds an optimal path, like Dijkstra’s Algorithm does. A* uses the heuristic to reorder the nodes so that it’s more likely that the goal node will be encountered sooner.

And … that’s it! That’s the A* algorithm.

More#

Are you ready to implement this? Consider using an existing library. If you’re implementing it yourself, I have companion guide that shows step by step how to implement graphs, queues, and pathfinding algorithms in Python, C++, and C#.

Which algorithm should you use for finding paths on a game map?

What about optimal paths? Breadth First Search and Dijkstra’s Algorithm are guaranteed to find the shortest path given the input graph. Greedy Best First Search is not. A* is guaranteed to find the shortest path if the heuristic is never larger than the true distance. As the heuristic becomes smaller, A* turns into Dijkstra’s Algorithm. As the heuristic becomes larger, A* turns into Greedy Best First Search.

What about performance? The best thing to do is to eliminate unnecessary locations in your graph. If using a grid, see this. Reducing the size of the graph helps all the graph search algorithms. After that, use the simplest algorithm you can; simpler queues run faster. Greedy Best First Search typically runs faster than Dijkstra’s Algorithm but doesn’t produce optimal paths. A* is a good choice for most pathfinding needs.

What about non-maps? I show maps here because I think it’s easier to understand how the algorithms work by using a map. However, these graph search algorithms can be used on any sort of graph, not only game maps, and I’ve tried to present the algorithm code in a way that’s independent of 2d grids. Movement costs on the maps become arbitrary weights on graph edges. The heuristics don’t translate as easily to arbitrary maps; you have to design a heuristic for each type of graph. For planar maps, distances are a good choice, so that’s what I’ve used here.

I have written more notes about pathfinding[4]. Keep in mind that graph search is only one part of what you will need. A* doesn’t itself handle things like cooperative movement, moving obstacles, map changes, evaluation of dangerous areas, formations, turn radius, object sizes, animation, path smoothing, or lots of other topics.
